Author: sgeorge, Posted on: 28 June 2026 11:36

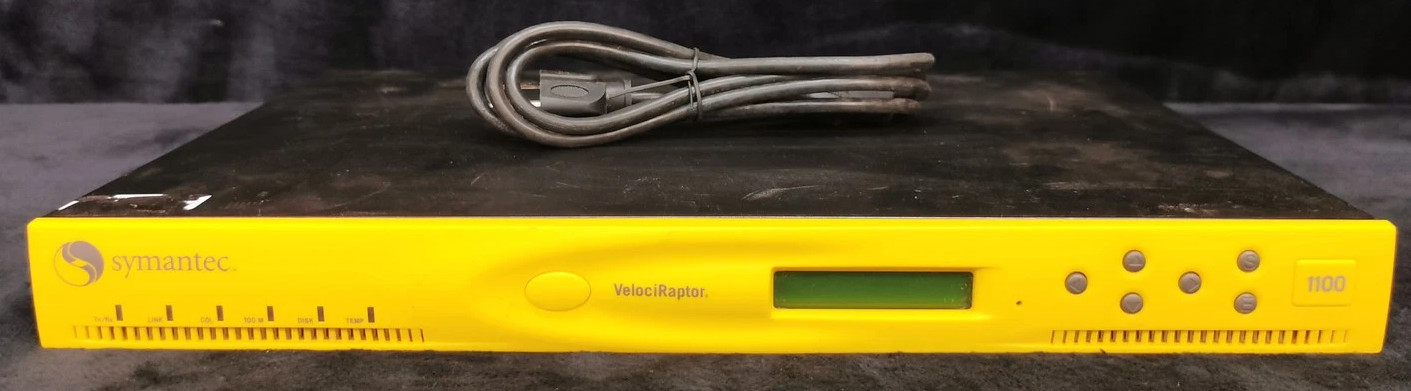

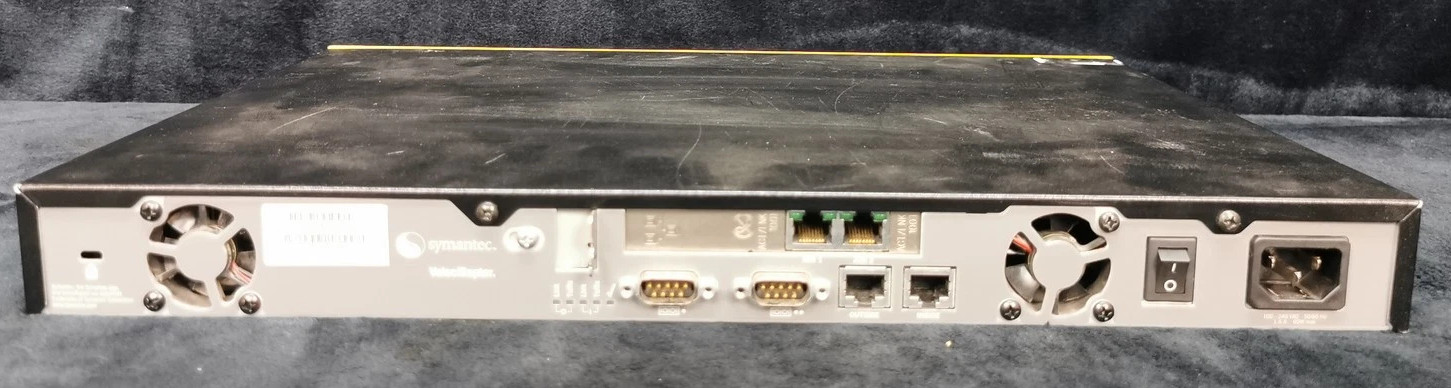

We also picked up a sister device to the Cobalt Qube 2. A Cobalt RAQ in disguise if you will. The Symantec Velociraptor 1100, which is I think a RAQ 3 or RAQ 4 running a AMD K6-2 (ok it turns out to be a AMD K6-III-450mhz), it is also I think the "i" version of the RAQ as it comes with two ethernet ports. (There was 3 versions of the RAQ, base RAQ, "i", with two ethernet and "r" with raid.). This has 4 ethernet (an Intel PRO/100 S server 64bit pci ethernet board) and cabling for two drives, so its an IR? I dunno if they made a standard version that was basically the "I" and "R" versions combined.
The Symantec Velociraptor was originally made by Axent before being acquired. (you can see Axent's name pop up in the boot messages below).
Initial power on, powered off. Weird. So, with power on, a watchdog was tripping immediatly and powering everything off, then timing out after about 2 seconds, causing a reboot to start back up. so it i was shutting down the moment it started up... I pulled the tiny power supply and put it under my DC load.

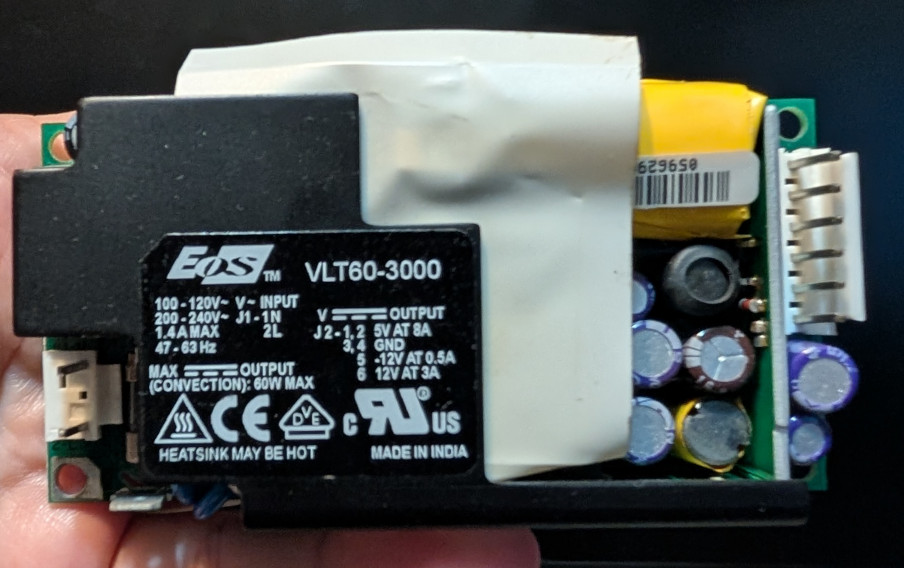

I could pull 5A, 6A, etc off the 5VDC line no problems... But I could get nothing from the 12v line. I couldnt see anything that was wrong on the PSU, but its a very very dense surface mount birdseed design. Snagged an apparently NOS psu on ebay for next to nothing.

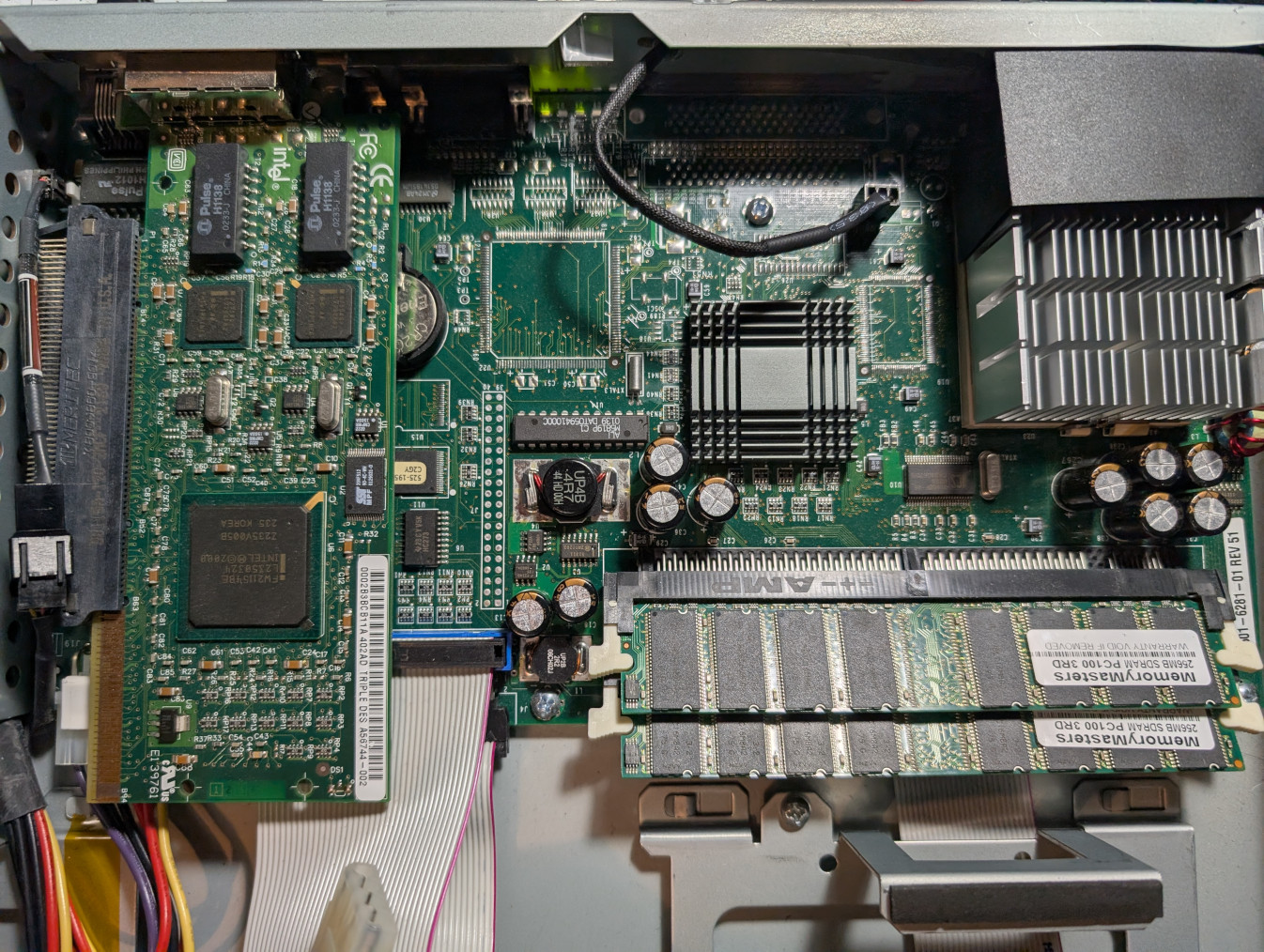

(heres a look inside with its Intel PCI-X card in a PCI slot, after I upgraded the two fans to Noctua NF-A4x10 FLX fans. No noise, still runs cold!)
Dropping that in, we have boot!! (I dont know if the 1976 date is a rollover year 2000 issue, the Qube2 deffo had a y2k bios issue).
Cobalt Networks, Inc. - Connecting the Dots
Firmware version 2.3.39
Current date: Mar 02 11:00:30 UTC 1976
ROM build info: Wed May 23 15:58:36 PDT 2001 freakshow.
System serial number: Uninitialized
Memory found: 256 MB
Initializing I2C bus: done
Scanning PCI bus: done
Initializing IDE: done
Initializing SCSI: no SCSI controller installed - failed
Initializing ethernet: 2 ethernet controllers installed - done
Initializing flash: done
Flash bank 0: AMD AM29F080B 1MB (1:d5)
Flash bank 1: not installed.
Initializing USB: done
Mounting rom_fs: done
Initializing i18n - language "en": done
Press spacebar to enter ROM mode
Booting default method - From network
First stage kernel: Decompressing - done
Linux version 2.2.16C26 (thockin@freakshow) (gcc version egcs-2.91.66 19990314/Linux (egcs-1.1.2 release)) #2 (ROM kernel) Thu May 17 18:20:29 PDT 2001
Ignoring bogus EBDA pointer 3FEB000
Detected 448210 kHz processor.
Pending 0x00
Calibrating delay loop... 894.57 BogoMIPS
Memory: 257468k/262144k available (1336k kernel code, 416k reserved, 2848k data, 76k init)
Dentry hash table entries: 32768 (order 6, 256k)
Buffer cache hash table entries: 262144 (order 8, 1024k)
Page cache hash table entries: 65536 (order 6, 256k)
VFS: Diskquotas version dquot_6.4.0 initialized
CPU: L1 I Cache: 32K L1 D Cache: 32K
CPU: L2 Cache: 128K
CPU: AMD AMD-K6(tm)-III Processor stepping 04
Checking 386/387 coupling... OK, FPU using exception 16 error reporting.
Checking 'hlt' instruction... OK.
POSIX conformance testing by UNIFIX
PCI: Using configuration type 1
PCI: Probing PCI hardware
Linux NET4.0 for Linux 2.2
Based upon Swansea University Computer Society NET3.039
NET4: Unix domain sockets 1.0 for Linux NET4.0.
NET4: Linux TCP/IP 1.0 for NET4.0
IP Protocols: ICMP, UDP, TCP, IGMP
TCP: Hash tables configured (ehash 262144 bhash 65536)
IPv4 over IPv4 tunneling driver
early initialization of device tunl0 is deferred
GRE over IPv4 tunneling driver
early initialization of device gre0 is deferred
NET4: AppleTalk 0.18 for Linux NET4.0
Initializing RT netlink socket
Starting kswapd v 1.5
Cobalt I2C bus initialized
Cobalt temperature sensor v1.3 enabled
Serial driver version 4.27 with no serial options enabled
keyboard: Timeout - AT keyboard not present?
keyboard: Timeout - AT keyboard not present?
ttyS00 at 0x03f8 (irq = 4) is a 16550A
ttyS01 at 0x02f8 (irq = 3) is a 16550A
pty: 256 Unix98 ptys configured
Real Time Clock Driver v1.09
lcd: Cobalt LCD Driver v3.12
serialnumber: Version 1.9 initialized. Serial number=67000008ad701c01.
Copyright (c)1994-2000 Axent Technologies, Inc.
RAM disk driver initialized: 16 RAM disks of 4096K size
loop: registered device at major 7
Uniform Multi-Platform E-IDE driver Revision: 6.30
ide: Assuming 33MHz system bus speed for PIO modes; override with idebus=xx
ALI15X3: IDE controller on PCI bus 00 dev 78
ALI15X3: chipset revision 193
ALI15X3: 100% native mode on irq 14
ide0: BM-DMA at 0xf000-0xf007, BIOS settings: hda:DMA, hdb:DMA
ide1: BM-DMA at 0xf008-0xf00f, BIOS settings: hdc:DMA, hdd:DMA
md driver 0.90.0 MAX_MD_DEVS=256, MAX_REAL=12
translucent personality registered
linear personality registered
raid0 personality registered
raid1 personality registered
raid5 personality registered
raid5: measuring checksumming speed
raid5: MMX detected, trying high-speed MMX checksum routines
pII_mmx : 933.069 MB/sec
p5_mmx : 862.584 MB/sec
8regs : 438.912 MB/sec
32regs : 281.178 MB/sec
using fastest function: pII_mmx (933.069 MB/sec)
scsi : 0 hosts.
scsi : detected total.
PPP: version 2.3.7 (demand dialling)
TCP compression code copyright 1989 Regents of the University of California
PPP line discipline registered.
eth0: Invalid EEPROM checksum 0x244f, check settings before activating this device!
eth0: Intel PCI EtherExpress Pro100 82559ER, 00:10:E0:03:6F:10, I/O at 0x6040, IRQ 11.
Board assembly 000000-000, Physical connectors present:
Primary interface chip None PHY #0.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xdbd8681d).
Receiver lock-up workaround activated.
eth1: Invalid EEPROM checksum 0x234f, check settings before activating this device!
eth1: Intel PCI EtherExpress Pro100 82559ER, 00:10:E0:03:6F:0F, I/O at 0x6080, IRQ 10.
Board assembly 000000-000, Physical connectors present:
Primary interface chip None PHY #0.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xdbd8681d).
Receiver lock-up workaround activated.
eth2: OEM i8255[789] 10/100 Ethernet, 00:02:B3:BC:B1:1A, I/O at 0x7000, IRQ 9.
Receiver lock-up bug exists -- enabling work-around.
Board assembly a56744-002, Physical connectors present: RJ45
Primary interface chip i82555 PHY #1.
Secondary interface chip i82555.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xb874c1d3).
eth3: OEM i8255[789] 10/100 Ethernet, 00:02:B3:BC:B1:1B, I/O at 0x7040, IRQ 10.
Receiver lock-up bug exists -- enabling work-around.
Board assembly a56744-002, Physical connectors present: RJ45
Primary interface chip i82555 PHY #1.
Secondary interface chip i82555.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xb874c1d3).
Sending BOOTP requests ... timed out!
IP-Config: Retrying forever (NFS root)...
Sending BOOTP requests ... timed out!
IP-Config: Retrying forever (NFS root)...
Sending BOOTP requests ... timed out!
IP-Config: Retrying forever (NFS root)...
Sending BOOTP requests ... timed out!
IP-Config: Retrying forever (NFS root)...
Ahum... well, this was not quite at all what I was expecting, I was thinking I was going to see an AMD K6-2-300mhz cpu but its a K6-III-450! The PCB layout matches a RAQ 3 but I didnt think the RAQ3 had K6-III's. Intriguing.
One thing to keep in mind, its not a Cobalt RAQ, its Symantec Velociraptor 1100, which was the high end rarptor (there was 500, 700, 1000 range of models). The only post I could find was a reference on servethehome forums, which I find inconclusive
"It's basically Cobalt Raq 4 (500), XTR (700) or 550 (1000)"
Which does not jibe with what is physically in front of me, as that statement says my 1100 should be based on the Cobalt 550 which is a Pentium III model, the XTR base system is also a Pentium III model.
What little information I cand find is the 1000 series had three models.
Digging deeper, I think I get it a bit more. There were three series around that time.
VelociRaptor Model 500/700/1000 VelociRaptor Model 1100/1200/1300 Symantec Gateway Security 5110/5200/5300
So maybe the info from the servethehome forum about 500/700/1000 is correct in its Cobalt model definitions, and you could extrapolate than the 1100/1200/1300 follow the RAQ 4, XTR, 550 model as well, since the 1100 is the base model in this series.
Just to confuse things, I've also read the 700 model has a socket 7 cpu, which again refutes the servethehome info... so I dont know what is correct. (I have read that the 500/700/1000/1100 were all K6 systems)....
Sooo (this is future me typing back here), the truth is the 1100 is a RAQ3.
Anyway, the two biggest problems I see in that bootup message are, the onboard intel NIC's both have invalid EEPROMS, and secondly, all four of the intel NIC's have the "Receiver lock-up" bug, which is a bug in the silicon as far as I can tell.
Not sure what I can do about that, I have a dual NIC 3COM 3C982 card, but it depends if the drivers are installed for it (they are not in the bootrom kernel), but maybe on disk in the installed OS, but I wont know until later. (The 3c982 is basically a dual 3C905c card so uses standard old 3com drivers).
So, in goes a NOS 32gb SSD from Kingston.
aaaaaaaaaaand...
hda: V100S232G , 0MB w/14736kB Cache, CHS=63/0/50
hda: INVALID GEOMETRY: 0 PHYSICAL HEADS?
aaargh sod, the linux kernel is too old to understand 0 physical heads (its actually a -1 count, so it has 1!), back then, such things didnt exist...
(which makes me wonder how the 256 SSD in the Qube2 which is older, worked...)
So IDE to SATA is a no a go. Time to try an IDE to SD adapter and see if it still has 0 heads...
(skip further down for the full failed log, and the completed install log)
Anyway, were in! restored and on the go. (Thing to note, when doing the install make sure you have your ethernet connectd to the 'inside' port, the one closest to the power supply!)

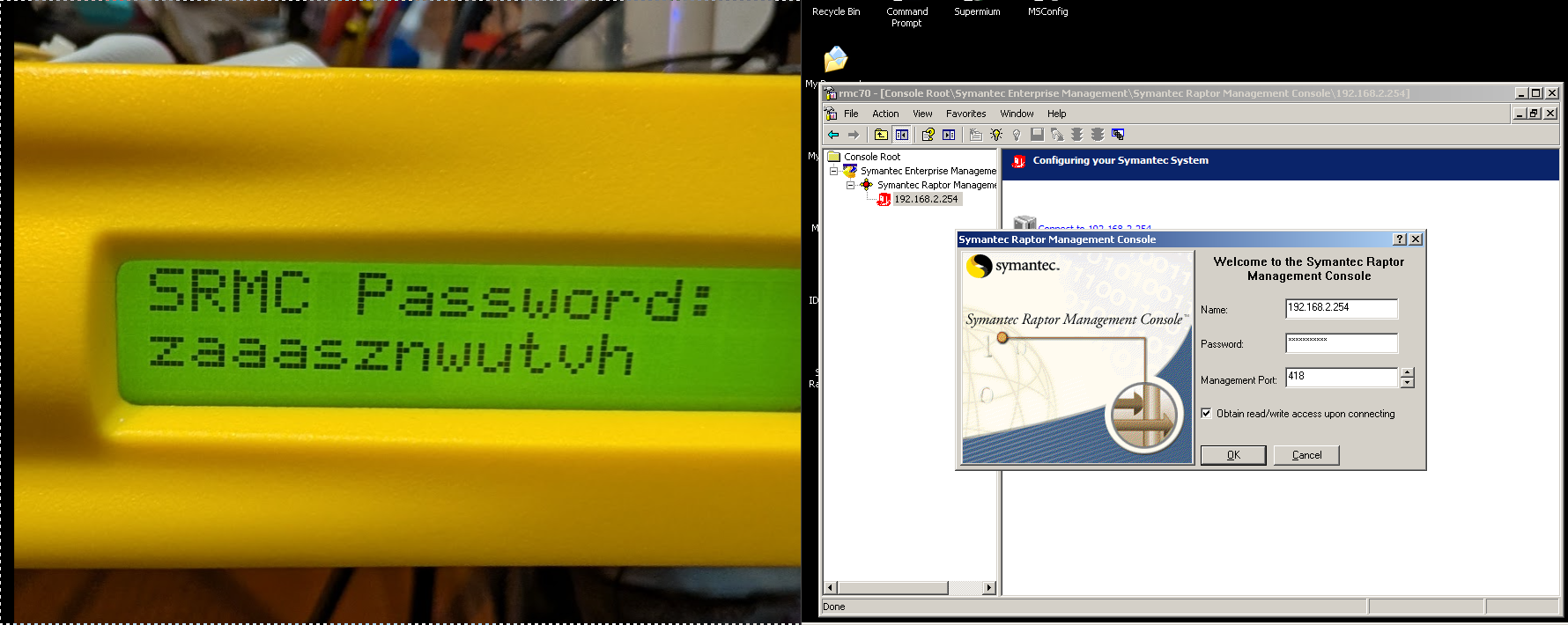

This thing is wild. When it starts up it generates a bunch of passwwords, aaaand you cant configure it beyond manually giving it an IP address and then pointing it to a windows machine... yes... you have to point it to a windows machine called the SRMC, "Symantec Raptor Management Console".
So, then I spin up a XP vm I have for messing around with and install the SRMC off the restore image (it has a nice Client software install directory).
PTSD flashbacks. Its an MMC plugin.

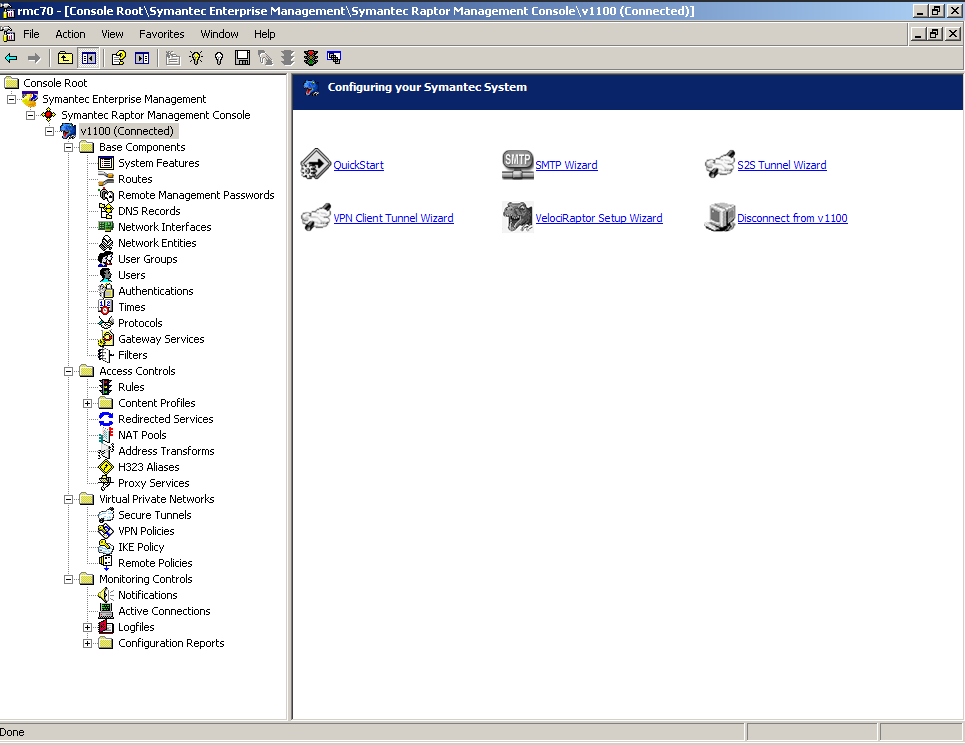

Yep. ALL configuration is done through here. I was expecting a suite of webpages like other Cobalt machines but no, its some java special sauce I believe, and everything is done through the MMC plugin.
Whats wild is, the restore CD installs in the year 2000, then its initial boot is smart enough to hit an NTP server and immediately says "your license expired" (because you had a 5 day trial).
This was interesting to poke at but really nothing to see and not something I need on my network. So... I flashed the RAQ3 Business Edition restore onto it (since it is just a raq 3). I might mess with flashing the XTR or 550 restore images to play with it and make it usefull.
In loading the RAQ 3 restore, there is some wild things that pop up like;
Can't exec "/Bin/rm": No such file or directory at /home/tmp/.swupdate/pkgunpack.1224/scripts/pre-install/20_InstallPatch line 5.
yeah... its case sensitive. someone should have known better or didnt test... (more than likely its irrelevant).
and why is it looking for /usr/games/.doug ??
Determined this build is 4010WG
+ [ ! -f /usr/games/.doug ]
GZDIO: 514 reads, 4204968 total bytes in 2.119 secs
+ [ ! -f /usr/games/.doug ]
I also learnt, using the raq550.iso, it lets you upgrade the ROM (from what I was on 2.3.39, I went firstly to 2.3.40, then to to 2.10.1. just make sure you select the raq3 when you choose to upgrade the rom!) and promptly reinstalled the raq550 system onto it.
If nothing else, here is the install log dump of the failed install;
Cobalt Networks, Inc. - Connecting the Dots
Firmware version 2.3.39
Current date: Mar 16 10:10:35 UTC 1976
ROM build info: Wed May 23 15:58:36 PDT 2001 freakshow.
System serial number: Uninitialized
Memory found: 512 MB
Initializing I2C bus: done
Scanning PCI bus: done
Initializing IDE: done
Initializing SCSI: no SCSI controller installed - failed
Initializing ethernet: 2 ethernet controllers installed - done
Initializing flash: done
Flash bank 0: AMD AM29F080B 1MB (1:d5)
Flash bank 1: not installed.
Initializing USB: done
Mounting rom_fs: done
Initializing i18n - language "en": done
Press spacebar to enter ROM mode
System is in LCD menu mode
First stage kernel: Decompressing - done
Linux version 2.2.16C26 (thockin@freakshow) (gcc version egcs-2.91.66 19990314/Linux (egcs-1.1.2 release)) #2 (ROM kernel) Thu May 17 18:20:29 PDT 2001
Ignoring bogus EBDA pointer 31C7000
Detected 448219 kHz processor.
Pending 0x00
Calibrating delay loop... 894.57 BogoMIPS
Memory: 517020k/524288k available (1336k kernel code, 416k reserved, 5440k data, 76k init)
Dentry hash table entries: 65536 (order 7, 512k)
Buffer cache hash table entries: 524288 (order 9, 2048k)
Page cache hash table entries: 131072 (order 7, 512k)
VFS: Diskquotas version dquot_6.4.0 initialized
CPU: L1 I Cache: 32K L1 D Cache: 32K
CPU: L2 Cache: 128K
CPU: AMD AMD-K6(tm)-III Processor stepping 04
Checking 386/387 coupling... OK, FPU using exception 16 error reporting.
Checking 'hlt' instruction... OK.
POSIX conformance testing by UNIFIX
PCI: Using configuration type 1
PCI: Probing PCI hardware
Linux NET4.0 for Linux 2.2
Based upon Swansea University Computer Society NET3.039
NET4: Unix domain sockets 1.0 for Linux NET4.0.
NET4: Linux TCP/IP 1.0 for NET4.0
IP Protocols: ICMP, UDP, TCP, IGMP
TCP: Hash tables configured (ehash 524288 bhash 65536)
IPv4 over IPv4 tunneling driver
early initialization of device tunl0 is deferred
GRE over IPv4 tunneling driver
early initialization of device gre0 is deferred
NET4: AppleTalk 0.18 for Linux NET4.0
Initializing RT netlink socket
Starting kswapd v 1.5
Cobalt I2C bus initialized
Cobalt temperature sensor v1.3 enabled
Serial driver version 4.27 with<4>keyboard: Timeout - AT keyboard not present?
keyboard: Timeout - AT keyboard not present?
no serial options enabled
ttyS00 at 0x03f8 (irq = 4) is a 16550A
ttyS01 at 0x02f8 (irq = 3) is a 16550A
pty: 256 Unix98 ptys configured
Real Time Clock Driver v1.09
lcd: Cobalt LCD Driver v3.12
serialnumber: Version 1.9 initialized. Serial number=67000008ad701c01.
Copyright (c)1994-2000 Axent Technologies, Inc.
RAM disk driver initialized: 16 RAM disks of 4096K size
loop: registered device at major 7
Uniform Multi-Platform E-IDE driver Revision: 6.30
ide: Assuming 33MHz system bus speed for PIO modes; override with idebus=xx
ALI15X3: IDE controller on PCI bus 00 dev 78
ALI15X3: chipset revision 193
ALI15X3: 100% native mode on irq 14
ide0: BM-DMA at 0xf000-0xf007, BIOS settings: hda:DMA, hdb:DMA
ide1: BM-DMA at 0xf008-0xf00f, BIOS settings: hdc:DMA, hdd:DMA
hda: V100S232G , ATA DISK drive
ide: Assuming 33MHz system bus speed for PIO modes; override with idebus=xx
ide0 at 0x1f0-0x1f7,0x3f6 on irq 14
hda: V100S232G , 0MB w/14736kB Cache, CHS=63/0/50
hda: INVALID GEOMETRY: 0 PHYSICAL HEADS?
md driver 0.90.0 MAX_MD_DEVS=256, MAX_REAL=12
translucent personality registered
linear personality registered
raid0 personality registered
raid1 personality registered
raid5 personality registered
raid5: measuring checksumming speed
raid5: MMX detected, trying high-speed MMX checksum routines
pII_mmx : 933.069 MB/sec
p5_mmx : 862.584 MB/sec
8regs : 438.912 MB/sec
32regs : 281.178 MB/sec
using fastest function: pII_mmx (933.069 MB/sec)
scsi : 0 hosts.
scsi : detected total.
PPP: version 2.3.7 (demand dialling)
TCP compression code copyright 1989 Regents of the University of California
PPP line discipline registered.
eth0: Invalid EEPROM checksum 0x244f, check settings before activating this device!
eth0: Intel PCI EtherExpress Pro100 82559ER, 00:10:E0:03:6F:10, I/O at 0x6040, IRQ 11.
Board assembly 000000-000, Physical connectors present:
Primary interface chip None PHY #0.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xdbd8681d).
Receiver lock-up workaround activated.
eth1: Invalid EEPROM checksum 0x234f, check settings before activating this device!
eth1: Intel PCI EtherExpress Pro100 82559ER, 00:10:E0:03:6F:0F, I/O at 0x6080, IRQ 10.
Board assembly 000000-000, Physical connectors present:
Primary interface chip None PHY #0.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xdbd8681d).
Receiver lock-up workaround activated.
eth2: OEM i8255[789] 10/100 Ethernet, 00:02:B3:BC:B1:1A, I/O at 0x7000, IRQ 9.
Receiver lock-up bug exists -- enabling work-around.
Board assembly a56744-002, Physical connectors present: RJ45
Primary interface chip i82555 PHY #1.
Secondary interface chip i82555.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xb874c1d3).
eth3: OEM i8255[789] 10/100 Ethernet, 00:02:B3:BC:B1:1B, I/O at 0x7040, IRQ 10.
Receiver lock-up bug exists -- enabling work-around.
Board assembly a56744-002, Physical connectors present: RJ45
Primary interface chip i82555 PHY #1.
Secondary interface chip i82555.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xb874c1d3).
Sending BOOTP requests . OK
IP-Config: Got BOOTP answer from 10.0.0.250
IP-Config: Complete:
device=eth0, addr=10.0.0.150, mask=255.0.0.0, gw=255.255.255.255,
host=10.0.0.150, domain=mfg.cobaltmicro.com, nis-domain=(none),
bootserver=10.0.0.250, rootserver=10.0.0.250, rootpath=
md.c: sizeof(mdp_super_t) = 4096
Partition check:
autodetecting RAID arrays
autorun ...
... autorun DONE.
Looking up port of RPC 100003/2 on 10.0.0.250
request_module[bandwidth_mgr]: Root fs not mounted
Looking up port of RPC 100005/1 on 10.0.0.250
VFS: Mounted root (NFS filesystem) readonly.
Freeing unused kernel memory: 76k freed
INIT: version 2.82 booting
Mounting /proc: done
Bringing up lo: ifconfig lo 127.0.0.1 netmask 255.0.0.0 broadcast 127.255.255.255
done
Starting portmap: done
Configured network: eth0
My MAC is: 00:10:E0:03:6F:10
mount: can't get address for tester
mount: can't get address for tester
mkdir: cannot make directory `/tmp/mac': Read-only file system
umount: //tmp: not mounted
Mounting tester:/test_dir/mac/036F10/tmp as /tmp
mount: can't get address for tester
/bin/rm: cannot unlink `/tmp/BASE_AFTER_SCRIPTS': Read-only file system
/bin/rm: cannot unlink `/tmp/BASE_BEFORE_SCRIPTS': Read-only file system
/bin/rm: cannot unlink `/tmp/BASE_PACKAGES': Read-only file system
/bin/rm: cannot unlink `/tmp/BASE_QUALIFY_SCRIPTS': Read-only file system
/bin/rm: cannot unlink `/tmp/BASE_RPM_LIST': Read-only file system
/bin/rm: cannot unlink `/tmp/_usr_admserv_cgi-bin_.cobalt_dns_index.cgi.tmp2059.2059': Read-only file system
/bin/rm: cannot unlink `/tmp/cobalt_error.log': Read-only file system
Mounting tester:/test_dir/mac/036F10/autorun as /autorun
mount: can't get address for tester
Hardware codename is: RaQ3, Hardware generation is:
getting build...
Build: 1100_1.1.2.1
Updates:
CTO Packages:
Building product 1100_1.1.2.1
with updates:
and CTO:
Prod field is 1100
You currently have ROM: 2.3.39 installed
ROM version ok
build_release: /tmp/fstab: Read-only file system
build_release: /tmp/mkfs_opts: Read-only file system
build_release: /tmp/ptable: Read-only file system
build_release: /tmp/raidtab: Read-only file system
Building Cobalt Linux Release 1.0 () build 1.1.2.1 for a 1100 in English
build_release: /tmp/build: Read-only file system
build_release: /tmp/vendor-release: Read-only file system
build_release: /tmp/cobalt-release: Read-only file system
Verifying release_spec
build_release: /tmp/BASE_QUALIFY_SCRIPTS: Read-only file system
Found 0 script(s) to execute prior to drive partitioning.
build_release: /tmp/BASE_BEFORE_SCRIPTS: Read-only file system
Found 0 script(s) to execute prior to installation.
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
build_release: /tmp/BASE_RPM_LIST: Read-only file system
Found 90 rpm(s) for the 1100.
build_release: /tmp/BASE_AFTER_SCRIPTS: Read-only file system
build_release: /tmp/BASE_AFTER_SCRIPTS: Read-only file system
build_release: /tmp/BASE_AFTER_SCRIPTS: Read-only file system
build_release: /tmp/BASE_AFTER_SCRIPTS: Read-only file system
build_release: /tmp/BASE_AFTER_SCRIPTS: Read-only file system
build_release: /tmp/BASE_AFTER_SCRIPTS: Read-only file system
build_release: /tmp/BASE_AFTER_SCRIPTS: Read-only file system
build_release: /tmp/BASE_AFTER_SCRIPTS: Read-only file system
build_release: /tmp/BASE_AFTER_SCRIPTS: Read-only file system
build_release: /tmp/BASE_AFTER_SCRIPTS: Read-only file system
build_release: /tmp/BASE_AFTER_SCRIPTS: Read-only file system
build_release: /tmp/BASE_AFTER_SCRIPTS: Read-only file system
build_release: /tmp/BASE_AFTER_SCRIPTS: Read-only file system
Found 12 script(s) to execute after installation.
build_release: /tmp/BASE_PACKAGES: Read-only file system
Found 0 packages(s) to install at end of build.
build_release: /tmp/BASE_UPDATES: Read-only file system
Found 0 packages(s) to install after reboot as updates.
rm: cannot unlink `/tmp/cobalt_error.log': Read-only file system
./cobalt_install: /tmp/fstab: No such file or directory
./cobalt_install: [: =: unary operator expected
Building system without RAID support
Destination device:
./cobalt_install: /tmp/fstab: No such file or directory
./cobalt_install: /tmp/fstab: No such file or directory
./cobalt_install: /tmp/fstab: No such file or directory
Partitioning disk
touch: /tmp/faketab: Read-only file system
Couldn't open /tmp/faketab -- No such file or directory
Couldn't open /tmp/faketab -- No such file or directory
Couldn't open /tmp/faketab -- No such file or directory
Couldn't open /tmp/faketab -- No such file or directory
Couldn't open /tmp/faketab -- No such file or directory
rm: cannot remove `/tmp/faketab': No such file or directory
./cobalt_install: /tmp/ptable: No such file or directory
cat: /tmp/fstab: No such file or directory
cat: /tmp/fstab: No such file or directory
BASH=/bin/sh
BASH_VERSION=1.14.7(1)
BUILD=1.1.2.1
CODENAME=
CONSOLE=/dev/console
DESTRUCTIVE=yes
DEST_DEV=
DEVEL=no
DOUG=
EUID=0
EXP_BUILD=no
FSTAB_DEV=
GM=no
HARDWARE_GEN=
HOME=/
HOSTTYPE=i386
IFS=
INIT_VERSION=sysvinit-2.82
LANGUAGE=English
LOCALE=en_US
MNT_DIR=/mntdir
MNT_DIR_CHK=no
NET_BUILD=yes
OPTERR=1
OPTIND=1
OSTYPE=Linux
PATH=/sbin:/usr/sbin:/bin:/sbin:/usr/bin:/usr/sbin:/usr/local/sbin
PPID=77
PREVLEVEL=N
PRODUCT=1100
PROJ_DIR=/bto-sync/production/1100_1.1.2.1
PS4=+
PWD=/bto-sync/production/1100_1.1.2.1/installer
RAID=no
RELEASE=1.0
ROOT=/mntdir
RPMS=/bto-sync/production/1100_1.1.2.1/rpms
RUNLEVEL=S
SHELL=/bin/sh
SHLVL=4
TERM=linux
TIME_ZONE=US/Eastern
TMP_DIR=/tmp
UID=0
VENDOR=Cobalt
_=]
array=5
filesystem_list=
fs_table=/tmp/fstab
mkfs_opts=/tmp/mkfs_opts
mkraid=/sbin/mkraid
mount_map=
partition_table=/tmp/ptable
raid_table=/tmp/raidtab
raidstop=/sbin/raidstop
sfdisk=/sbin/sfdisk -f -L -uM
__await_verification=()
{
while [ -e sum.calc ]; do
sleep 5;
done;
if [ ! -e sum.OK ]; then
inform VERIFICATION FAILED;
sleep 10000;
fi
}
__calculate_GM_sumfile=()
{
if [ ${GM:=no} = yes ]; then
inform Calculating sumfile.GM;
echo -n "Golden Master Checksum: ";
./sumdisk ${MNT_DIR:?} sumfile.GM;
cp ${TMP_DIR:?}/cobalt_error.log cobalt_error.GM;
./stripid cobalt_error.GM;
fi
}
__export_PRODUCT=()
{
if [ ! -e release_spec -a ! -e release_spec.$PRODUCT -o -z "$PRODUCT" ]; then
echo Must set environment variable PRODUCT to be one of these:;
echo release_spec.* | sed 's/release_spec./ /g';
echo Terminating.;
exit 1;
fi;
export PRODUCT
}
__find_the_file=()
{
local hook=$1;
local searched_files=$2;
local dir=$3;
local outfile=$4;
local all_files=`ls -f $dir`;
local count=0;
>$outfile;
for file in $searched_files;
do
case $all_files in
*${file}*)
file_fullpath=$dir/$file;
[ -z "$hook" ] || eval $hook $file $file_fullpath;
echo $file_fullpath >>$outfile;
count=$(( $count+1 ))
;;
*)
while [ ! -e $dir/$file ]; do
echo "Cannot-find $file in $dir";
sleep 5;
done
;;
esac;
done;
return $count
}
__get_list=()
{
grep -v '^#' ${RELSPEC:?} | sed -n -e "/%begin $1/,/%end $1/ p" | grep -v '^%'
}
__indulge_in_manufacturing_paranoia=()
{
./stripid ${TMP_DIR:?}/cobalt_error.log;
local sum_bld=`sum $TMP_DIR/cobalt_error.log | cut -f1 -d" "`;
local sum_gm=`sum cobalt_error.GM | cut -f1 -d" "`;
if [ $sum_bld -ne $sum_gm ]; then
inform BUILD FAILED;
rm ${MNT_DIR:?}/boot/vmlinux.gz;
sleep 10000;
fi
}
__inform_forever=()
{
local msg=$1;
while true; do
set $msg;
while [ -n "$1" ]; do
inform $1 $2;
shift 2;
sleep 2;
done;
done
}
__set_RELSPEC=()
{
if [ -e release_spec ]; then
echo Using deprecated release_spec;
echo Using deprecated release_spec;
echo Using deprecated release_spec' 'READ;
echo Using deprecated release_spec;
echo Using deprecated release_spec' 'YOUR;
echo Using deprecated release_spec;
echo Using deprecated release_spec' 'MAIL;
echo Using deprecated release_spec;
echo Using deprecated release_spec' !!!!';
echo Using deprecated release_spec;
RELSPEC=release_spec;
else
RELSPEC=release_spec.${PRODUCT:?};
fi
}
__set_other_useful_variables=()
{
local fstab=$1;
local ptable=$2;
local raidtab=$3;
local mkfs_opts=$4;
export DOUG=" ";
export DEVEL;
: ${PROJECT:=fargo};
: ${PROJ_DIR:=/mnt/$PROJECT};
export PROJ_DIR;
: ${EXP_BUILD:=no};
[ $EXP_BUILD = no ] || DOUG=${DOUG}'Experimental '${EXP_BUILD}' ';
: ${DEVEL:=no};
[ $DEVEL = yes ] && DOUG=$DOUG'Development ';
if [ ! -d $PROJ_DIR ]; then
echo "Project directory $PROJ_DIR not found. Terminating.";
exit 1;
fi;
if [ ! -f ./CVS/Entries ]; then
echo "Can't find your CVS directory. Terminating.";
exit 1;
fi;
export BUILD=`grep ^/$RELSPEC/ ./CVS/Entries | cut -f3 -d"/"`;
: ${BUILD:=0};
LANGUAGE=`__get_list Languages`;
RELEASE=`__get_list Release`;
VENDOR=`__get_list Vendor`;
CODENAME=`__get_list Codename`;
TIME_ZONE=`__get_list Timezone`;
LOCALE=`__get_list Locale`;
QUALIFY_SCRIPTS=`__get_list Qualify_Scripts`;
BEFORE_SCRIPTS=`__get_list Before_Scripts`;
AFTER_SCRIPTS=`__get_list After_Scripts`;
PACKAGES=`__get_list Packages`;
UPDATES=`__get_list Updates`;
__get_list fstab >$fstab;
__get_list mkfs_opts >$mkfs_opts;
__get_list Partition_Table >$ptable;
__get_list raidtab >$raidtab;
CORE_RPMS=`__get_list Core_RPMs`;
echo "Building ${VENDOR:=Cobalt} Linux${DOUG}Release $RELEASE ($CODENAME) build $BUILD for a $PRODUCT in $LANGUAGE"
}
__verify_synchronously=()
{
local installer=/nfsroot/${PRODUCT:?}_${BUILD:?}/installer;
rsh tester touch $installer/sum.calc;
./sumdisk ${MNT_DIR:?} ${TMP_DIR:?}/sumfile;
local sum_gm=`sum sumfile.GM | cut -f1 -d" "`;
local sum_build=`sum $TMP_DIR/sumfile | cut -f1 -d" "`;
if [ $sum_gm -eq $sum_build ]; then
rsh tester touch $installer/sum.OK;
rsh tester rm $installer/sum.calc;
else
rsh tester rm $installer/sum.calc;
inform VERIFICATION FAILED;
sleep 10000;
fi
}
find_the_after_scripts=()
{
__find_the_file "$1" "$AFTER_SCRIPTS" `pwd`/scripts ${TMP_DIR:?}/BASE_AFTER_SCRIPTS;
echo "Found $? script(s) to execute after installation."
}
find_the_before_scripts=()
{
__find_the_file "$1" "$BEFORE_SCRIPTS" `pwd`/scripts ${TMP_DIR:?}/BASE_BEFORE_SCRIPTS;
echo "Found $? script(s) to execute prior to installation."
}
find_the_core_rpms=()
{
__find_the_file "$1" "$CORE_RPMS" ${PROJ_DIR:?}/rpms ${TMP_DIR:?}/BASE_RPM_LIST;
echo "Found $? rpm(s) for the $PRODUCT."
}
find_the_packages=()
{
__find_the_file "$1" "$PACKAGES" ${PROJ_DIR:?}/packages ${TMP_DIR:?}/BASE_PACKAGES;
echo "Found $? packages(s) to install at end of build."
}
find_the_qualify_scripts=()
{
__find_the_file "$1" "$QUALIFY_SCRIPTS" `pwd`/scripts ${TMP_DIR:?}/BASE_QUALIFY_SCRIPTS;
echo "Found $? script(s) to execute prior to drive partitioning."
}
find_the_updates=()
{
__find_the_file "$1" "$UPDATES" ${PROJ_DIR:?}/packages ${TMP_DIR:?}/BASE_UPDATES;
echo "Found $? packages(s) to install after reboot as updates."
}
get_mkfs=()
{
case "$1" in
'reiserfs')
echo '/sbin/mkreiserfs'
;;
'ext2')
echo '/sbin/mke2fs -m 0'
;;
*)
echo '/sbin/mkfs'
;;
esac
}
inform=()
{
echo "$1" "$2";
[ ${NET_BUILD:=no} = yes ] && /sbin/writelcd -s "$1" "$2";
true
}
init_for_GM_yes=()
{
__calculate_GM_sumfile
}
load_packages=()
{
local package_list_file=$1;
if [ -s $1 ]; then
for package in `cat $package_list_file`;
do
inform "Installing Package" `basename $package`;
must cp $package $MNT_DIR/tmp;
must chroot $MNT_DIR /usr/local/sbin/cobalt_upgrade /tmp/`basename $package`;
must rm $MNT_DIR/tmp/`basename $package`;
done;
if [ -x $MNT_DIR/usr/admserv/cgi-bin/.cobalt/install/install.cgi ]; then
must chroot $MNT_DIR /usr/admserv/cgi-bin/.cobalt/install/install.cgi >$MNT_DIR/etc/updates;
done;
fi
}
make_raidtab=()
{
disks=$(cd /proc/ide; ls -d hd*);
numdisk=$(echo $disks | wc -w );
echo "Number of disks is: $numdisk";
if [ $numdisk = 1 ]; then
raid_type=0;
else
raid_type=1;
fi;
echo "Raid type is: $raid_type";
for part in 1 3 4 6;
do
if [ $part = 4 ]; then
this_raid=0;
else
this_raid=${raid_type};
fi;
cat $raid_table | sed -e "s/\[MD${part}RAIDLEVEL\]/${this_raid}/" -e "s/\[MD${part}RAIDDISKS\]/${numdisk}/" >${raid_table}.tmp${part};
export part disks this_raid;
set_raiddevices;
done
}
mount_all_filesystems=()
{
local filesystem_list=$1;
if [ $MNT_DIR_CHK = yes -a -e $MNT_DIR ]; then
echo "Mount point $MNT_DIR already exists.";
echo "Previous install interrupted?";
if [ $NET_BUILD = yes ]; then
echo "Terminating.";
exit 1;
else
echo "Type y and hit RETURN to unmount all filesystems under";
echo "$MNT_DIR, after which $0 can continue with the build.";
echo -n "Continue? ";
read answer;
if [ "$answer" = y ]; then
must umount_all_filesystems "$filesystem_list";
else
echo "OK, you must do this manually: unmount each filesystem";
echo "under $MNT_DIR, including $MNT_DIR,";
echo "and then rmdir $MNT_DIR.";
echo "Terminating.";
exit 1;
fi;
fi;
fi;
set $mount_map;
while [ -n "$1" ]; do
inform "Mounting $1" "on $2";
[ -d $2 ] || must mkdir $2;
must mount $1 $2;
shift 2;
done
}
must=()
{
"$@" || {
echo $0: "$@" failed. Terminating.;
exit 1
}
}
reverse=()
{
local ret="";
for elem in $1;
do
ret="$elem $ret";
done;
echo "$ret"
}
run_scripts=()
{
local script_list_file=$1;
local saved_cwd=$PWD;
if [ -f $1 ]; then
for script in `cat $script_list_file`;
do
inform "Running script" `basename $script`;
cd $MNT_DIR;
must $SHELL -$- $script;
done;
cd $saved_cwd;
fi
}
set_and_export_TMP_DIR=()
{
: ${TMP_DIR:=/tmp};
export TMP_DIR
}
set_raiddevices=()
{
cat ${raid_table}.tmp${part} | awk '
BEGIN { split ( ENVIRON["disks"], disks )
part=ENVIRON["part"]
raidlevel=ENVIRON["this_raid"] }
/^\[MD/ {
if ( match($0,part) == 4 ) {
if ( raidlevel == 5 ) {
printf( "chunk-size\t32\n")
printf( "parity-algorithm\tleft-symmetric\n")
} else {
printf( "chunk-size\t4\n")
}
for ( x in disks ) {
printf( "device\t/dev/%s%s\n",disks[x],part )
printf( "raid-disk\t%s\n",x-1 )
}
} else { print }
}
! /^\[MD/ { print }
' >${raid_table}
}
setup_for_install=()
{
__export_PRODUCT;
__set_RELSPEC;
__set_other_useful_variables $@
}
umount_all_filesystems=()
{
local filesystem_list=$1;
[ ${NET_BUILD:=no} = yes ] && local umount_opts='-n';
for fs in `reverse "$filesystem_list"`;
do
umount $umount_opts $fs;
done;
[ $NET_BUILD = yes ] || must rmdir $MNT_DIR
}
verify_install=()
{
if [ ${NET_BUILD:?} = yes -a ${EXP_BUILD:?} = no ]; then
inform Manufacturing "paranoia check";
__indulge_in_manufacturing_paranoia;
EXT2-fs warning: mounting unchecked fs, running e2fsck is recommended
fi;
if [ $NET_BUILD = yes -a $EXP_BUILD = no -a ! -e sum.OK ]; then
if [ -e sum.calc ]; then
inform Awaiting verification;
__await_verification;
else
inform Verifying release;
__verify_synchronously;
fi;
fi
}
/dev/root on / type nfs (ro,addr=10.0.0.10)
/proc on /proc type proc (rw)
mkdir: cannot make directory `/mntdir/proc': Read-only file system
./cobalt_install: mkdir /mntdir/proc failed. Terminating.
build_release: /bin/sh - ./cobalt_install failed. Terminating.
Loading MFG hook
Creating .master files if needed
Created /etc/HOSTNAME.master
Created /etc/BOOTED.master
Created /etc/NET-CONFIG.master
*** Can't find server name for address 10.0.0.254: No response from server
*** Default servers are not available
eth0 Link encap:Ethernet HWaddr 00:10:E0:03:6F:10
inet addr:10.0.0.150 Bcast:10.255.255.255 Mask:255.0.0.0
Found Broadcast(10.255.255.255) and Netmask(255.0.0.0)!
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:6347 errors:0 dropped:0 overruns:0 frame:0
TX packets:3462 errors:0 dropped:0 overruns:0 carrier:0
collisions:0
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
10.0.0.0 0.0.0.0 255.0.0.0 U 0 0 0 eth0
Found Network(10.0.0.0)!
127.0.0.0 0.0.0.0 255.0.0.0 U 0 0 0 lo
Contents of /mntdir/etc/resolv.conf:
search mfg.cobaltmicro.com
nameserver 10.0.0.254
Contents of /mntdir/etc/sysconfig/network:
NETWORKING=yes
FORWARD_IPV4=no
HOSTNAME=
GATEWAYDEV=eth0
GATEWAY=
Contents of /mntdir/etc/HOSTNAME:
Contents of /mntdir/etc/NET-CONFIG:
BOOTPROTO=lcd
Contents of /mntdir/etc/sysconfig/network-scripts/ifcfg-eth0:
DEVICE=eth0
ONBOOT=yes
IPADDR=10.0.0.150
NETWORK=10.0.0.0
NETMASK=255.0.0.0
BROADCAST=10.255.255.255
Writing Updates to the disk:
Writing Bundles to the disk:
/bin/rm: cannot unlink `/tmp/BASE_AFTER_SCRIPTS': Read-only file system
/bin/rm: cannot unlink `/tmp/BASE_BEFORE_SCRIPTS': Read-only file system
/bin/rm: cannot unlink `/tmp/BASE_PACKAGES': Read-only file system
/bin/rm: cannot unlink `/tmp/BASE_QUALIFY_SCRIPTS': Read-only file system
/bin/rm: cannot unlink `/tmp/BASE_RPM_LIST': Read-only file system
/bin/rm: cannot unlink `/tmp/cobalt_error.log': Read-only file system
/bin/rm: cannot unlink `/tmp/_usr_admserv_cgi-bin_.cobalt_dns_index.cgi.tmp2059.2059': Read-only file system
/bin/rm: cannot remove directory `/tmp': Read-only file system
INIT: Switching to runlevel: 6
INIT: Sending processes the TERM signaShutting down Mail Service: sendmail okrm: cannot unlink `/var/run/sendmail.pid': Read-only file system
rm: cannot unlink `/var/lock/subsys/sendmail': Read-only file system
Stopping INET services: inetd okrm: cannot unlink `/var/run/inetd.pid': Read-only file system
rm: cannot unlink `/var/lock/subsys/inet': Read-only file system
Stopping cron daemon: crond okrm: cannot unlink `/var/run/crond.pid': Read-only file system
rm: cannot unlink `/var/lock/subsys/crond': Read-only file system
Stopping httpd
Stopping random Saving random seed...
rm: cannot unlink `/var/lock/subsys/random': Read-only file system
Shutting down SMB Service: Warning: /boot/System.map has an incorrect kernel version.
ERROR!Warning: /boot/System.map has an incorrect kernel version.
ERROR!rm: cannot unlink `/var/lock/subsys/smb': Read-only file system
Stopping portmap services: portmap okStopping nfsfs Unmounting remote filesystems.rm: cannot unlink `/var/lock/subsys/nfsfs': Read-only file system
Shutting down kernel logger: klogd okrm: cannot unlink `/var/run/klogd.pid': Read-only file system
Shutting down system logger: syslogd okrm: cannot unlink `/var/run/syslogd.pid': Read-only file system
rm: cannot unlink `/var/lock/subsys/syslog': Read-only file system
Sending all processes the TERM signal...
INIT: no more processes left in this runlevel
Sending all procmd: recovery thread got woken up ...
esses the KILL smd: recovery thread finished ...
ignal..
mdrecoveryd(6) flushing signals.
Unmounting file systems
Remounting remaining filesystems (if any) readonly
SYSTEM REBOOTING
stopping all md devices.
disabling network interfaces.
Restarting system.
Cobalt Networks, Inc. - Connecting the Dots
Firmware version 2.3.39
Current date: Mar 16 11:29:43 UTC 1976
ROM build info: Wed May 23 15:58:36 PDT 2001 freakshow.
System serial number: Uninitialized
Memory found: 512 MB
Initializing I2C bus: done
Scanning PCI bus: done
Initializing IDE: done
IDE 0 master: found
Initializing SCSI: no SCSI controller installed - failed
Initializing ethernet: 2 ethernet controllers installed - done
Initializing flash: done
Flash bank 0: AMD AM29F080B 1MB (1:d5)
Flash bank 1: not installed.
Initializing USB: done
Mounting rom_fs: done
Initializing i18n - language "en": done
Press spacebar to enter ROM mode
Booting default method - From disk
First stage kernel: Decompressing - done
Second stage kernel: Decompressing - done
And here is the full install;
Welcome to minicom 2.9
OPTIONS: I18n
Port /dev/ttyUSB0, 16:04:31
Press CTRL-A Z for help on special keys
Cobalt Networks, Inc. - Connecting the Dots
Firmware version 2.3.39
Current date: Mar 24 08:11:43 UTC 1976
ROM build info: Wed May 23 15:58:36 PDT 2001 freakshow.
System serial number: Uninitialized
Memory found: 512 MB
Initializing I2C bus: done
Scanning PCI bus: done
Initializing IDE: done
IDE 0 master: found
Initializing SCSI: no SCSI controller installed - failed
Initializing ethernet: 2 ethernet controllers installed - done
Initializing flash: done
Flash bank 0: AMD AM29F080B 1MB (1:d5)
Flash bank 1: not installed.
Initializing USB: done
Mounting rom_fs: done
Initializing i18n - language "en": done
Press spacebar to enter ROM mode
System is in LCD menu mode
First stage kernel: Decompressing - done
Linux version 2.2.16C26 (thockin@freakshow) (gcc version egcs-2.91.66 19990314/Linux (egcs-1.1.2 release)) #2 (ROM kernel) Thu May 17 18:20:29 PDT 2001
Ignoring bogus EBDA pointer 1585000
Detected 448210 kHz processor.
Pending 0x00
Calibrating delay loop... 894.57 BogoMIPS
Memory: 517020k/524288k available (1336k kernel code, 416k reserved, 5440k data, 76k init)
Dentry hash table entries: 65536 (order 7, 512k)
Buffer cache hash table entries: 524288 (order 9, 2048k)
Page cache hash table entries: 131072 (order 7, 512k)
VFS: Diskquotas version dquot_6.4.0 initialized
CPU: L1 I Cache: 32K L1 D Cache: 32K
CPU: L2 Cache: 128K
CPU: AMD AMD-K6(tm)-III Processor stepping 04
Checking 386/387 coupling... OK, FPU using exception 16 error reporting.
Checking 'hlt' instruction... OK.
POSIX conformance testing by UNIFIX
PCI: Using configuration type 1
PCI: Probing PCI hardware
Linux NET4.0 for Linux 2.2
Based upon Swansea University Computer Society NET3.039
NET4: Unix domain sockets 1.0 for Linux NET4.0.
NET4: Linux TCP/IP 1.0 for NET4.0
IP Protocols: ICMP, UDP, TCP, IGMP
TCP: Hash tables configured (ehash 524288 bhash 65536)
IPv4 over IPv4 tunneling driver
early initialization of device tunl0 is deferred
GRE over IPv4 tunneling driver
early initialization of device gre0 is deferred
NET4: AppleTalk 0.18 for Linux NET4.0
Initializing RT netlink socket
Starting kswapd v 1.5
Cobalt I2C bus initialized
Cobalt temperature sensor v1.3 enabled
Serial driver version 4.27 with<4>keyboard: Timeout - AT keyboard not present?
keyboard: Timeout - AT keyboard not present?
no serial options enabled
ttyS00 at 0x03f8 (irq = 4) is a 16550A
ttyS01 at 0x02f8 (irq = 3) is a 16550A
pty: 256 Unix98 ptys configured
Real Time Clock Driver v1.09
lcd: Cobalt LCD Driver v3.12
serialnumber: Version 1.9 initialized. Serial number=67000008ad701c01.
Copyright (c)1994-2000 Axent Technologies, Inc.
RAM disk driver initialized: 16 RAM disks of 4096K size
loop: registered device at major 7
Uniform Multi-Platform E-IDE driver Revision: 6.30
ide: Assuming 33MHz system bus speed for PIO modes; override with idebus=xx
ALI15X3: IDE controller on PCI bus 00 dev 78
ALI15X3: chipset revision 193
ALI15X3: 100% native mode on irq 14
ide0: BM-DMA at 0xf000-0xf007, BIOS settings: hda:DMA, hdb:DMA
ide1: BM-DMA at 0xf008-0xf00f, BIOS settings: hdc:DMA, hdd:DMA
hda: CF CARD, ATA DISK drive
ide: Assuming 33MHz system bus speed for PIO modes; override with idebus=xx
ide0 at 0x1f0-0x1f7,0x3f6 on irq 14
hda: CF CARD, 30535MB w/1kB Cache, CHS=62041/16/63, UDMA(33)
md driver 0.90.0 MAX_MD_DEVS=256, MAX_REAL=12
translucent personality registered
linear personality registered
raid0 personality registered
raid1 personality registered
raid5 personality registered
raid5: measuring checksumming speed
raid5: MMX detected, trying high-speed MMX checksum routines
pII_mmx : 933.069 MB/sec
p5_mmx : 862.584 MB/sec
8regs : 438.912 MB/sec
32regs : 281.178 MB/sec
using fastest function: pII_mmx (933.069 MB/sec)
scsi : 0 hosts.
scsi : detected total.
PPP: version 2.3.7 (demand dialling)
TCP compression code copyright 1989 Regents of the University of California
PPP line discipline registered.
eth0: Invalid EEPROM checksum 0x244f, check settings before activating this device!
eth0: Intel PCI EtherExpress Pro100 82559ER, 00:10:E0:03:6F:10, I/O at 0x6040, IRQ 11.
Board assembly 000000-000, Physical connectors present:
Primary interface chip None PHY #0.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xdbd8681d).
Receiver lock-up workaround activated.
eth1: Invalid EEPROM checksum 0x234f, check settings before activating this device!
eth1: Intel PCI EtherExpress Pro100 82559ER, 00:10:E0:03:6F:0F, I/O at 0x6080, IRQ 10.
Board assembly 000000-000, Physical connectors present:
Primary interface chip None PHY #0.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xdbd8681d).
Receiver lock-up workaround activated.
eth2: OEM i8255[789] 10/100 Ethernet, 00:02:B3:BC:B1:1A, I/O at 0x7000, IRQ 9.
Receiver lock-up bug exists -- enabling work-around.
Board assembly a56744-002, Physical connectors present: RJ45
Primary interface chip i82555 PHY #1.
Secondary interface chip i82555.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xb874c1d3).
eth3: OEM i8255[789] 10/100 Ethernet, 00:02:B3:BC:B1:1B, I/O at 0x7040, IRQ 10.
Receiver lock-up bug exists -- enabling work-around.
Board assembly a56744-002, Physical connectors present: RJ45
Primary interface chip i82555 PHY #1.
Secondary interface chip i82555.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xb874c1d3).
Sending BOOTP requests . OK
IP-Config: Got BOOTP answer from 10.0.0.254
IP-Config: Complete:
device=eth1, addr=10.0.0.150, mask=255.0.0.0, gw=255.255.255.255,
host=10.0.0.150, domain=mfg.cobaltmicro.com, nis-domain=(none),
bootserver=10.0.0.254, rootserver=10.0.0.254, rootpath=
md.c: sizeof(mdp_super_t) = 4096
Partition check:
hda: hda1
autodetecting RAID arrays
autorun ...
... autorun DONE.
Looking up port of RPC 100003/2 on 10.0.0.254
request_module[bandwidth_mgr]: Root fs not mounted
Looking up port of RPC 100005/1 on 10.0.0.254
VFS: Mounted root (NFS filesystem) readonly.
Freeing unused kernel memory: 76k freed
INIT: version 2.82 booting
Mounting /proc: done
Bringing up lo: ifconfig lo 127.0.0.1 netmask 255.0.0.0 broadcast 127.255.255.255
done
Starting portmap: done
Configured network: eth1
My MAC is: 00:10:E0:03:6F:0F
Mounting tester:/test_dir/mac/036F0F/tmp as /tmp
Mounting tester:/test_dir/mac/036F0F/autorun as /autorun
Hardware codename is: RaQ3, Hardware generation is:
getting build...
Build: 1100_1.1.2.1
Updates:
CTO Packages:
Building product 1100_1.1.2.1
with updates:
and CTO:
Prod field is 1100
You currently have ROM: 2.3.39 installed
ROM version ok
Building Cobalt Linux Release 1.0 () build 1.1.2.1 for a 1100 in English
Verifying release_spec
Found 0 script(s) to execute prior to drive partitioning.
Found 0 script(s) to execute prior to installation.
Found 90 rpm(s) for the 1100.
Found 12 script(s) to execute after installation.
Found 0 packages(s) to install at end of build.
Found 0 packages(s) to install after reboot as updates.
Building system without RAID support
Destination device: /dev/hda
Destination / partition: 1
Destination swap partition: 2
Destination /var partition: 3
Partitioning disk
/dev/md1: No such device
/dev/md6: No such device
/dev/md3: No such device
/dev/md4: No such device
/dev/md5: No such device
Checking that no hda:-one is using th hda1is disk right no
w ...
OK
Disk /dev/hda: 62041 cylinders, 16 heads, 63 sectors/track
Old situation:
Warning: The first partition looks like it was made
for C/H/S=*/255/63 (instead of 62041/16/63).
For this listing I'll assume that geometry.
Units = megabytes of 1048576 bytes, blocks of 1024 bytes, counting from 0
Device Boot Start End MB #blocks Id System
/dev/hda1 4 30535- 30532- 31264568 c Win95 FAT32 (LBA)
/dev/hda2 0 - 0 0 0 Empty
/dev/hda3 0 - 0 0 0 Empty
/dev/hda4 0 - 0 0 0 Empty
New situation:
Units = megabytes of 1048576 bytes, blocks of 1024 bytes, counting from 0
Device Boot Start End MB #blocks Id System
/dev/hda1 0+ 1000- 1001- 1024127+ 83 Linux
/dev/hda2 1000+ 1512- 513- 524664 82 Linux swap
/dev/hda3 1512+ 30535- 29024- 29719872 83 Linux
/dev/hda4 0 - 0 0 0 Empty
Warning: no primary partition is marked bootable (active)
This does not matter for LILO, but the DOS MBR will not boot this disk.
Successfully wrote the new partition table
Re-reading the partition table ...
hda: hda1 hda2 hda3
If you created or changed a DOS partition, /dev/foo7, say, then use dd(1)
to zero the first 512 bytes: dd if=/dev/zero of=/dev/foo7 bs=512 count=1
(See fdisk(8).)
Formatting /dev/hda1
Personalities : [linear] [raid0] [raid1] [raid5] [translucent]
read_ahead not set
unused devices:
mke2fs 1.14, 9-Jan-1999 for EXT2 FS 0.5b, 95/08/09
warning: 126 blocks unused.
Linux ext2 filesystem format
Filesystem label=
257000 inodes, 1024001 blocks
0 blocks (0.00%) reserved for the super user
First data block=1
Block size=1024 (log=0)
Fragment size=1024 (log=0)
125 block groups
8192 blocks per group, 8192 fragments per group
2056 inodes per group
Superblock backups stored on blocks:
8193, 16385, 24577, 32769, 40961, 49153, 57345, 65537, 73729, 81921,
90113, 98305, 106497, 114689, 122881, 131073, 139265, 147457, 155649,
163841, 172033, 180225, 188417, 196609, 204801, 212993, 221185, 229377,
237569, 245761, 253953, 262145, 270337, 278529, 286721, 294913, 303105,
311297, 319489, 327681, 335873, 344065, 352257, 360449, 368641, 376833,
385025, 393217, 401409, 409601, 417793, 425985, 434177, 442369, 450561,
458753, 466945, 475137, 483329, 491521, 499713, 507905, 516097, 524289,
532481, 540673, 548865, 557057, 565249, 573441, 581633, 589825, 598017,
606209, 614401, 622593, 630785, 638977, 647169, 655361, 663553, 671745,
679937, 688129, 696321, 704513, 712705, 720897, 729089, 737281, 745473,
753665, 761857, 770049, 778241, 786433, 794625, 802817, 811009, 819201,
827393, 835585, 843777, 851969, 860161, 868353, 876545, 884737, 892929,
901121, 909313, 917505, 925697, 933889, 942081, 950273, 958465, 966657,
974849, 983041, 991233, 999425, 1007617, 1015809
Writing inode tables: done
Writing superblocks and filesystem accounting information: done
Personalities : [linear] [raid0] [raid1] [raid5] [translucent]
read_ahead not set
unused devices:
Formatting /dev/hda3
Personalities : [linear] [raid0] [raid1] [raid5] [translucent]
read_ahead not set
unused devices:
Formatting /dev/hda3
Personalities : [linear] [raid0] [raid1] [raid5] [translucent]
read_ahead not set
unused devices:
mke2fs 1.14, 9-Jan-1999 for EXT2 FS 0.5b, 95/08/09
Linux ext2 filesystem format
Filesystem label=
7430144 inodes, 29719872 blocks
0 blocks (0.00%) reserved for the super user
First data block=1
Block size=1024 (log=0)
Fragment size=1024 (log=0)
3628 block groups
8192 blocks per group, 8192 fragments per group
2048 inodes per group
Superblock backups stored on blocks:
8193, 16385, 24577, 32769, 40961, 49153, 57345, 65537, 73729, 81921,
... (( LOTS OF BLOCK LSITS WRITTEN OUT )) ...
29622273, 29630465, 29638657, 29646849, 29655041, 29663233, 29671425,
29679617, 29687809, 29696001, 29704193, 29712385
Writing Inodes: done
Writing superblocks and filesystem accounting information: done
Personalities : [linear] [raid0] [raid1] [raid5] [translucent]
read_ahead not set
unused devices:
Creating swap
Setting up swapspace version 1, size = 537251840 bytes
Adding Swap: 524656k swap-space (priority -1)
Mounting /dev/hda1 on /mntdir/
Mounting /dev/hda3 on /mntdir/var
/dev/root on / type nfs (ro,addr=10.0.0.254)
/proc on /proc type proc (rw)
tester:/test_dir on /test type nfs (rw,addr=tester)
tester:/test_dir/mac/036F0F/tmp on /tmp type nfs (rw,addr=tester)
tester:/test_dir/mac/036F0F/autorun on /autorun type nfs (rw,addr=tester)
/dev/hda1 on /mntdir/ type ext2 (rw)
/dev/hda3 on /mntdir/var type ext2 (rw)
Starting installation
Calculating proj_size
proj_size is 81044
1100 1.1.2.1 rpm 1/90 (0%)
setup ##################################################
1100 1.1.2.1 rpm 2/90 (0%)
filesystem ##################################################
1100 1.1.2.1 rpm 3/90 (0%)
1100 1.1.2.1 rpm 4/90 (0%)
ldconfig ##################################################
1100 1.1.2.1 rpm 5/90 (0%)
glibc ##################################################
/bto-sync/production/1100_1.1.2.1/rpms/glibc-2.1.3-15.i386.rpm:
MD5 sum mismatch
Expected: c2e651c62e3e0cc63dee80d7e1196c3e
Saw : 9537b101c749d9163461d3a435aaea90
1100 1.1.2.1 rpm 6/90 (11%)
shadow-utils ##################################################
1100 1.1.2.1 rpm 7/90 (11%)
SysVinit ##################################################
execution of SysVinit-2.74-11 script failed, exit status 255
1100 1.1.2.1 rpm 8/90 (11%)
termcap ##################################################
1100 1.1.2.1 rpm 9/90 (12%)
libtermcap ##################################################
1100 1.1.2.1 rpm 10/90 (12%)
1100 1.1.2.1 rpm 10/90 (12%)
grep ##################################################
execution of grep-2.4-3 script failed, exit status 255
1100 1.1.2.1 rpm 11/90 (12%)
zlib ##################################################
1100 1.1.2.1 rpm 12/90 (12%)
bash ##################################################
1100 1.1.2.1 rpm 13/90 (12%)
fileutils ##################################################
/var/tmp/rpm-tmp.67429: /sbin/install-info: No such file or directory
execution of fileutils-4.0-21 script failed, exit status 126
1100 1.1.2.1 rpm 14/90 (13%)
info ##################################################
1100 1.1.2.1 rpm 15/90 (13%)
textutils ##################################################
1100 1.1.2.1 rpm 16/90 (14%)
sed ##################################################
1100 1.1.2.1 rpm 17/90 (14%)
at ##################################################
/var/tmp/rpm-tmp.15537: /sbin/chkconfig: No such file or directory
execution of at-3.1.7-14 script failed, exit status 126
1100 1.1.2.1 rpm 18/90 (14%)
authconfig ##################################################
1100 1.1.2.1 rpm 19/90 (14%)
bdflush ##################################################
1100 1.1.2.1 rpm 20/90 (14%)
bind-utils ##################################################
1100 1.1.2.1 rpm 21/90 (15%)
binutils ##################################################
1100 1.1.2.1 rpm 22/90 (17%)
cracklib ##################################################
1100 1.1.2.1 rpm 23/90 (17%)
cracklib-dicts ##################################################
1100 1.1.2.1 rpm 24/90 (17%)
dev ##################################################
1100 1.1.2.1 rpm 25/90 (17%)
diffutils ##################################################
1100 1.1.2.1 rpm 26/90 (17%)
e2fsprogs ##################################################
1100 1.1.2.1 rpm 27/90 (18%)
ed ##################################################
1100 1.1.2.1 rpm 28/90 (18%)
file ##################################################
1100 1.1.2.1 rpm 29/90 (18%)
findutils ##################################################
1100 1.1.2.1 rpm 30/90 (18%)
finger ##################################################
1100 1.1.2.1 rpm 31/90 (18%)
ftp ##################################################
1100 1.1.2.1 rpm 32/90 (18%)
gawk ##################################################
1100 1.1.2.1 rpm 33/90 (19%)
gdb ##################################################
1100 1.1.2.1 rpm 34/90 (20%)
gdbm ##################################################
1100 1.1.2.1 rpm 35/90 (20%)
gettext ##################################################
1100 1.1.2.1 rpm 36/90 (21%)
getty_ps ##################################################
1100 1.1.2.1 rpm 37/90 (21%)
gmp ##################################################
1100 1.1.2.1 rpm 38/90 (21%)
gnupg ##################################################
1100 1.1.2.1 rpm 39/90 (21%)
groff ##################################################
1100 1.1.2.1 rpm 40/90 (23%)
gzip ##################################################
1100 1.1.2.1 rpm 41/90 (23%)
hdparm ##################################################
1100 1.1.2.1 rpm 42/90 (23%)
groupadd[839]: new group: name=utmp, gid=22
initscripts ##################################################
/var/tmp/rpm-tmp.94205: chkconfig: command not found
/var/tmp/rpm-tmp.94205: chkconfig: command not found
/var/tmp/rpm-tmp.94205: chkconfig: command not found
1100 1.1.2.1 rpm 43/90 (23%)
iputils ##################################################
1100 1.1.2.1 rpm 44/90 (23%)
jre ##################################################
/bto-sync/production/1100_1.1.2.1/rpms/jre-1.3.1.i386.rpm:
MD5 sum mismatch
Expected: d64174d6bfb96f3fdfd747a1915e4389
Saw : 0847daf000157d7c9a982e4e21c62791
1100 1.1.2.1 rpm 45/90 (41%)
kernel ##################################################
awk uses obsolete /proc/pci interface
1100 1.1.2.1 rpm 46/90 (43%)
kernel-utils ##################################################
1100 1.1.2.1 rpm 47/90 (43%)
less ##################################################
1100 1.1.2.1 rpm 48/90 (43%)
libc ##################################################
1100 1.1.2.1 rpm 49/90 (45%)
libstdc++ ##################################################
1100 1.1.2.1 rpm 50/90 (47%)
mailx ##################################################
1100 1.1.2.1 rpm 51/90 (47%)
man ##################################################
1100 1.1.2.1 rpm 52/90 (47%)
man-pages ##################################################
/bto-sync/production/1100_1.1.2.1/rpms/man-pages-1.28-6.noarch.rpm:
MD5 sum mismatch
Expected: 828a1957d9b71c99cb8a28aca5735139
Saw : 9e1a6fdbdad20b6704f9a6d42f033700
1100 1.1.2.1 rpm 53/90 (53%)
mgetty ##################################################
1100 1.1.2.1 rpm 54/90 (54%)
mingetty ##################################################
1100 1.1.2.1 rpm 55/90 (54%)
mktemp ##################################################
1100 1.1.2.1 rpm 56/90 (54%)
modutils ##################################################
1100 1.1.2.1 rpm 57/90 (54%)
mount ##################################################
1100 1.1.2.1 rpm 58/90 (54%)
ncurses ##################################################
1100 1.1.2.1 rpm 59/90 (55%)
net-tools ##################################################
1100 1.1.2.1 rpm 60/90 (56%)
pciutils ##################################################
1100 1.1.2.1 rpm 61/90 (56%)
pwdb ##################################################
1100 1.1.2.1 rpm 62/90 (56%)
pam ##################################################
1100 1.1.2.1 rpm 63/90 (57%)
passwd ##################################################
1100 1.1.2.1 rpm 64/90 (57%)
perl ##################################################
/bto-sync/production/1100_1.1.2.1/rpms/perl-5.00503-10.i386.rpm:
MD5 sum mismatch
Expected: dcebb5d4e4a46b72bee0c9a9bc136a0f
Saw : e066f54483ede8cd494dd5671bb23aa0
1100 1.1.2.1 rpm 65/90 (63%)
procmail ##################################################
1100 1.1.2.1 rpm 66/90 (63%)
procps ##################################################
1100 1.1.2.1 rpm 67/90 (63%)
psmisc ##################################################
1100 1.1.2.1 rpm 68/90 (63%)
readline ##################################################
1100 1.1.2.1 rpm 69/90 (63%)
rpm ##################################################
1100 1.1.2.1 rpm 70/90 (65%)
sendmail ##################################################
/var/tmp/rpm-tmp.56307: /sbin/chkconfig: No such file or directory
execution of sendmail-8.9.3-20 script failed, exit status 126
1100 1.1.2.1 rpm 71/90 (65%)
setserial ##################################################
1100 1.1.2.1 rpm 72/90 (65%)
sh-utils ##################################################
1100 1.1.2.1 rpm 73/90 (65%)
smartupstools ##################################################
1100 1.1.2.1 rpm 74/90 (65%)
stat ##################################################
1100 1.1.2.1 rpm 75/90 (65%)
strace ##################################################
1100 1.1.2.1 rpm 76/90 (65%)
sysklogd ##################################################
/var/tmp/rpm-tmp.40746: /sbin/chkconfig: No such file or directory
execution of sysklogd-1.3.31-16 script failed, exit status 126
1100 1.1.2.1 rpm 77/90 (65%)
tar ##################################################
1100 1.1.2.1 rpm 78/90 (66%)
telnet ##################################################
1100 1.1.2.1 rpm 79/90 (66%)
time ##################################################
1100 1.1.2.1 rpm 80/90 (66%)
traceroute ##################################################
1100 1.1.2.1 rpm 81/90 (66%)
util-linux ##################################################
1100 1.1.2.1 rpm 82/90 (67%)
vim-common ##################################################
1100 1.1.2.1 rpm 83/90 (69%)
vim-minimal ##################################################
1100 1.1.2.1 rpm 84/90 (69%)
vixie-cron ##################################################
/var/tmp/rpm-tmp.7506: /sbin/chkconfig: No such file or directory
execution of vixie-cron-3.0.1-40 script failed, exit status 126
1100 1.1.2.1 rpm 85/90 (69%)
which ##################################################
1100 1.1.2.1 rpm 86/90 (69%)
velociraptor-3des ##################################################
execution of velociraptor-3des-1.5-696 script failed, exit status 1
/bto-sync/production/1100_1.1.2.1/rpms/velociraptor-3des-1.5-696.i386.rpm:
MD5 sum mismatch
Expected: 020ec88d94b387f2aa19dfdeade18d13
Saw : e6d8c4df53002ffc10579927e6520d1d
1100 1.1.2.1 rpm 87/90 (99%)
slang ##################################################
1100 1.1.2.1 rpm 88/90 (99%)
newt ##################################################
1100 1.1.2.1 rpm 89/90 (99%)
popt ##################################################
1100 1.1.2.1 rpm 90/90 (99%)
pump ##################################################
Config file fstab
Config file network
Config file ifcfg-eth0
Config file resolv.conf
Config file hosts
Config file locale
Config file OS-1.0.md5lst
Config file build
Running script cron_swatch
touch: etc/locks/LCK..swatch: No such file or directory
Running script stop_stuff
No Arkeia rc script.
No networker rc script.
Running script mkmailspool
Running script mvweblogs
Running script mvmailqueue
Running script wipequota
Running script tag_release
cat: /mntdir/etc/cobalt-release: No such file or directory
Running script safetynet
Running script redhatdir
chroot: cannot execute cpio: No such file or directory
mv: /home/usr/src/redhat: No such file or directory
rmdir: /home/usr/src: No such file or directory
rmdir: /home/usr: No such file or directory
Running script crackdict
cat: /usr/dict/words: No such file or directory
0 0
Running script mknetrcscripts
Running script rmbadstuff
Cleaning up the first time
Final cleanup
###################### NOTICE ########################
one or more errors occurred while installing
RPM packages to the system.
here's the logfile (/tmp/cobalt_error.log):
/bto-sync/production/1100_1.1.2.1/rpms/SysVinit-2.74-11.i386.rpm:
execution of SysVinit-2.74-11 script failed, exit status 255
/bto-sync/production/1100_1.1.2.1/rpms/grep-2.4-3.i386.rpm:
execution of grep-2.4-3 script failed, exit status 255
/bto-sync/production/1100_1.1.2.1/rpms/fileutils-4.0-21.i386.rpm:
/var/tmp/rpm-tmp.67429: /sbin/install-info: No such file or directory
execution of fileutils-4.0-21 script failed, exit status 126
/bto-sync/production/1100_1.1.2.1/rpms/at-3.1.7-14.i386.rpm:
/var/tmp/rpm-tmp.15537: /sbin/chkconfig: No such file or directory
execution of at-3.1.7-14 script failed, exit status 126
/bto-sync/production/1100_1.1.2.1/rpms/initscripts-5.00-1.i386.rpm:
/var/tmp/rpm-tmp.94205: chkconfig: command not found
/var/tmp/rpm-tmp.94205: chkconfig: command not found
/var/tmp/rpm-tmp.94205: chkconfig: command not found
/bto-sync/production/1100_1.1.2.1/rpms/sendmail-8.9.3-20.i386.rpm:
/var/tmp/rpm-tmp.56307: /sbin/chkconfig: No such file or directory
execution of sendmail-8.9.3-20 script failed, exit status 126
/bto-sync/production/1100_1.1.2.1/rpms/sysklogd-1.3.31-16.i386.rpm:
/var/tmp/rpm-tmp.40746: /sbin/chkconfig: No such file or directory
execution of sysklogd-1.3.31-16 script failed, exit status 126
/bto-sync/production/1100_1.1.2.1/rpms/vixie-cron-3.0.1-40.i386.rpm:
/var/tmp/rpm-tmp.7506: /sbin/chkconfig: No such file or directory
execution of vixie-cron-3.0.1-40 script failed, exit status 126
/bto-sync/production/1100_1.1.2.1/rpms/velociraptor-3des-1.5-696.i386.rpm:
execution of velociraptor-3des-1.5-696 script failed, exit status 1
######################################################
Error log
Done 03/24 01:32:05
BEGIN: 00:12:27 END: 01:32:06
Loading MFG hook
Creating .master files if needed
Created /etc/resolv.conf.master
Created /etc/sysconfig/network.master
eth1 Link encap:Ethernet HWaddr 00:10:E0:03:6F:0F
inet addr:10.0.0.150 Bcast:10.255.255.255 Mask:255.0.0.0
Found Broadcast(10.255.255.255) and Netmask(255.0.0.0)!
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:127826 errors:0 dropped:0 overruns:0 frame:0
TX packets:95507 errors:0 dropped:0 overruns:0 carrier:0
collisions:0
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
10.0.0.0 0.0.0.0 255.0.0.0 U 0 0 0 eth1
Found Network(10.0.0.0)!
127.0.0.0 0.0.0.0 255.0.0.0 U 0 0 0 lo
Contents of /mntdir/etc/resolv.conf:
search mfg.cobaltmicro.com
nameserver 10.0.0.254
Contents of /mntdir/etc/sysconfig/network:
NETWORKING=yes
FORWARD_IPV4=no
HOSTNAME=lease150.mfg.cobaltmicro.com
GATEWAYDEV=eth1
GATEWAY=
Contents of /mntdir/etc/HOSTNAME:
lease150.mfg.cobaltmicro.com
Contents of /mntdir/etc/NET-CONFIG:
BOOTPROTO=lcd
Contents of /mntdir/etc/sysconfig/network-scripts/ifcfg-eth1:
DEVICE=eth1
ONBOOT=yes
IPADDR=10.0.0.150
NETWORK=10.0.0.0
NETMASK=255.0.0.0
BROADCAST=10.255.255.255
Writing Updates to the disk:
Writing Bundles to the disk:
INIT: Switching to runlevel: 6
INIT: Sending processeShutting down Mail Service: sendmail okrm: cannot unlink `/var/run/sendmail.pid': Read-only file system
rm: cannot unlink `/var/lock/subsys/sendmail': Read-only file system
Stopping INET services: inetd okrm: cannot unlink `/var/run/inetd.pid': Read-only file system
rm: cannot unlink `/var/lock/subsys/inet': Read-only file system
Stopping cron daemon: crond okrm: cannot unlink `/var/run/crond.pid': Read-only file system
rm: cannot unlink `/var/lock/subsys/crond': Read-only file system
Stopping httpd
Stopping random Saving random seed...
rm: cannot unlink `/var/lock/subsys/random': Read-only file system
Shutting down SMB Service: Warning: /boot/System.map has an incorrect kernel version.
ERROR!Warning: /boot/System.map has an incorrect kernel version.
ERROR!rm: cannot unlink `/var/lock/subsys/smb': Read-only file system
Stopping portmap services: portmap okStopping nfsfs Unmounting remote filesystems.rm: cannot unlink `/var/lock/subsys/nfsfs': Read-only file system
Shutting down kernel logger: klogd okrm: cannot unlink `/var/run/klogd.pid': Read-only file system
Shutting down system logger: syslogd okrm: cannot unlink `/var/run/syslogd.pid': Read-only file system
rm: cannot unlink `/var/lock/subsys/syslog': Read-only file system
Sending all processes the TERM signal...
INIT: no more processes left in this runlevel
Sending all procmd: recovery thread got woken up ...
esses the KILL smd: recovery thread finished ...
ignal..
mdrecoveryd(6) flushing signals.
Unmounting file systems
Remounting remaining filesystems (if any) readonly
SYSTEM REBOOTING
stopping all md devices.
disabling network interfaces.
Restarting system.
Cobalt Networks, Inc. - Connecting the Dots
Firmware version 2.3.39
Current date: Mar 24 09:32:25 UTC 1976
ROM build info: Wed May 23 15:58:36 PDT 2001 freakshow.
System serial number: Uninitialized
Memory found: 512 MB
Initializing I2C bus: done
Scanning PCI bus: done
Initializing IDE: done
IDE 0 master: found
Initializing SCSI: no SCSI controller installed - failed
Initializing ethernet: 2 ethernet controllers installed - done
Initializing flash: done
Flash bank 0: AMD AM29F080B 1MB (1:d5)
Flash bank 1: not installed.
Initializing USB: done
Mounting rom_fs: done
Initializing i18n - language "en": done
Press spacebar to enter ROM mode
Booting default method - From disk
First stage kernel: Decompressing - done
Second stage kernel: Decompressing - done
Linux version 2.2.16C30S1 (root@ethp.raptor.com) (gcc version egcs-2.91.66 19990314/Linux (egcs-1.1.2 release)) #1 Mon Sep 24 13:19:54 EDT 2001
Ignoring bogus EBDA pointer 1585000
Detected 448220 kHz processor.
Pending 0x00
Calibrating delay loop... 894.57 BogoMIPS
Memory: 517320k/524288k available (1084k kernel code, 412k reserved, 5428k data, 44k init)
Dentry hash table entries: 65536 (order 7, 512k)
Buffer cache hash table entries: 524288 (order 9, 2048k)
Page cache hash table entries: 131072 (order 7, 512k)
VFS: Diskquotas version dquot_6.4.0 initialized
CPU: L1 I Cache: 32K L1 D Cache: 32K
CPU: L2 Cache: 128K
CPU: AMD AMD-K6(tm)-III Processor stepping 04
Checking 386/387 coupling... OK, FPU using exception 16 error reporting.
Checking 'hlt' instruction... OK.
POSIX conformance testing by UNIFIX
PCI: Using configuration type 1
PCI: Probing PCI hardware
Linux NET4.0 for Linux 2.2
Based upon Swansea University Computer Society NET3.039
NET4: Unix domain sockets 1.0 for Linux NET4.0.
NET4: Linux TCP/IP 1.0 for NET4.0
IP Protocols: ICMP, UDP, TCP, IGMP
TCP: Hash tables configured (ehash 524288 bhash 65536)
Initializing RT netlink socket
Starting kswapd v 1.1.1.1
Cobalt watchdog v1.4 enabled
Cobalt I2C bus initialized
Cobalt temperature sensor v1.3 enabled
Serial driver version 4.27 with no serial options enabled
ttyS00 at 0x03f8 (irq = 4) is a 16550A
keyboard: Timeout - AT keyboard not present?
keyboard: Timeout - AT keyboard not present?
ttyS01 at 0x02f8 (irq = 3) is a 16550A
pty: 256 Unix98 ptys configured
Real Time Clock Driver v1.09
lcd: Cobalt LCD Driver v3.12
serialnumber: Version 1.1.1.1 initialized. Serial number=67000008ad701c01.
Copyright (c)1994-2000 Axent Technologies, Inc.
loop: registered device at major 7
Uniform Multi-Platform E-IDE driver Revision: 6.30
ide: Assuming 33MHz system bus speed for PIO modes; override with idebus=xx
ALI15X3: IDE controller on PCI bus 00 dev 78
ALI15X3: chipset revision 193
ALI15X3: 100% native mode on irq 14
ide0: BM-DMA at 0xf000-0xf007, BIOS settings: hda:DMA, hdb:DMA
ide1: BM-DMA at 0xf008-0xf00f, BIOS settings: hdc:DMA, hdd:DMA
hda: CF CARD, ATA DISK drive
ide: Assuming 33MHz system bus speed for PIO modes; override with idebus=xx
ide0 at 0x1f0-0x1f7,0x3f6 on irq 14
hda: CF CARD, 30535MB w/1kB Cache, CHS=62041/16/63, UDMA(33)
hda: task_no_data_intr: status=0x51 { DriveReady SeekComplete Error }
hda: task_no_data_intr: error=0x04 { DriveStatusError }
md driver 0.90.0 MAX_MD_DEVS=256, MAX_REAL=12
translucent personality registered
linear personality registered
raid0 personality registered
raid1 personality registered
raid5 personality registered
raid5: measuring checksumming speed
raid5: MMX detected, trying high-speed MMX checksum routines
pII_mmx : 933.069 MB/sec
p5_mmx : 862.203 MB/sec
8regs : 438.912 MB/sec
32regs : 281.178 MB/sec
using fastest function: pII_mmx (933.069 MB/sec)
eth0: Invalid EEPROM checksum 0x244f, check settings before activating this device!
eth0: Intel PCI EtherExpress Pro100 82559ER, 00:10:E0:03:6F:10, I/O at 0x6040, IRQ 11.
Board assembly 000000-000, Physical connectors present:
Primary interface chip None PHY #0.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xdbd8681d).
Receiver lock-up workaround activated.
eth1: Invalid EEPROM checksum 0x234f, check settings before activating this device!
eth1: Intel PCI EtherExpress Pro100 82559ER, 00:10:E0:03:6F:0F, I/O at 0x6080, IRQ 10.
Board assembly 000000-000, Physical connectors present:
Primary interface chip None PHY #0.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xdbd8681d).
Receiver lock-up workaround activated.
eth2: OEM i8255[789] 10/100 Ethernet, 00:02:B3:BC:B1:1A, I/O at 0x7000, IRQ 9.
Receiver lock-up bug exists -- enabling work-around.
Board assembly a56744-002, Physical connectors present: RJ45
Primary interface chip i82555 PHY #1.
Secondary interface chip i82555.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xb874c1d3).
eth3: OEM i8255[789] 10/100 Ethernet, 00:02:B3:BC:B1:1B, I/O at 0x7040, IRQ 10.
Receiver lock-up bug exists -- enabling work-around.
Board assembly a56744-002, Physical connectors present: RJ45
Primary interface chip i82555 PHY #1.
Secondary interface chip i82555.
General self-test: passed.
Serial sub-system self-test: passed.
Internal registers self-test: passed.
ROM checksum self-test: passed (0xb874c1d3).
md.c: sizeof(mdp_super_t) = 4096
Partition check:
hda: hda1 hda2 hda3
autodetecting RAID arrays
autorun ...
... autorun DONE.
VFS: Mounted root (ext2 filesystem) readonly.
Freeing unused kernel memory: 44k freed
INIT: version 2.74 booting
Welcome to Red Hat Linux
Press 'I' to enter interactive startup.
Mounting proc filesystem [ OK ]
Configuring kernel parameters [ OK ]
Setting clock : Wed Mar 24 09:32:54 EST 1976 [ OK ]
Activating swap partitions [ OK ]
Setting hostname lease150.mfg.cobaltmicro.com [ OK ]
Checking root filesystem
ext2fs_check_if_mount/dev/hda1: clean, 17928/257000 files, 260308/1024001 blocks
[/sbin/fsck.ext2 -- /] fsck.ext2 -a /dev/hda1
: No such file or directory while determining whether /dev/hda1 is mounted.
[ OK ]
Remounting root filesystem in read-write mode [ OK ]
Finding module dependencies [ OK ]
Checking filesystems
/dev/hda3: clean, 89/7430144 files, 1355881/29719872 blocks
Checking all file systems.
[/sbin/fsck.ext2 -- /var] fsck.ext2 -a /dev/hda3
[ OK ]
Mounting local filesystems [ OK ]
Enabling swap space [ OK ]
INIT: Entering runlevel: 3
Entering non-interactive startup
Setting network parameters [ OK ]
Bringing up interface lo [ OK ]
Bringing up interface eth0 [ OK ]
Bringing up interface eth1 [ OK ]
Initializing random number generator [ OK ]
Mounting other filesystems [ OK ]
Starting system logger: [ OK ]
Starting kernel logger: [ OK ]
Starting cron daemon: [ OK ]
Starting sendmail: [ OK ]
INIT: Switching to runlevel: 0
INIT: Sending processes the TERM signal
Stopping cron daemon: [ OK ]
Saving random seed [ OK ]
Sending all processes the TERM signal...
Sending all processes the KILL signal.. md: recovery thread got woken up ...
md: recovery thread finished ...
mdrecoveryd(6) flushing signals.
Turning off swap
Unmounting file systems
Unmounting proc file system
The system is halted
stopping all md devices.
flushing ide devices: hda
disabling network interfaces.
Power down.
tags: AMD K6, Cobalt, Velociraptor
(dont include links in your comments.)
